Removal
1. The unit is located on the left mudguard of the engine compartment or on the front panel of the body next to the radiator.
2. Disconnect the ground wire from the battery (see "Disconnecting the battery").
3. Unscrew the nut securing the block to the corresponding support (figure 3.3).

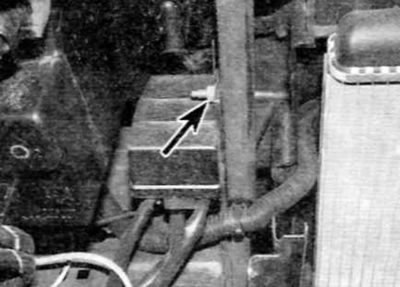

Figure 3.3. Loosen the nut securing the pre-heating system unit to the corresponding support
4. Disconnect the electrical connector at the base of the unit, then remove the two nuts and disconnect the power wires from the unit (figure 3.4). Remove the block from the engine compartment.

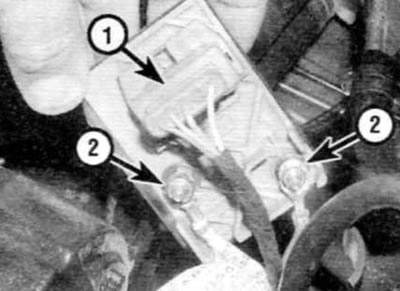

Figure 3.4. Disconnect the electrical connector (1), then unscrew the nuts (2) and disconnect the power wires from the control unit
Installation
5. Installation is performed in the reverse order of removal. Connect the electrical connectors correctly.
