Side window glass
Removal
1. Remove the three screws securing the window glass closing latch to the body (figure 21.1).

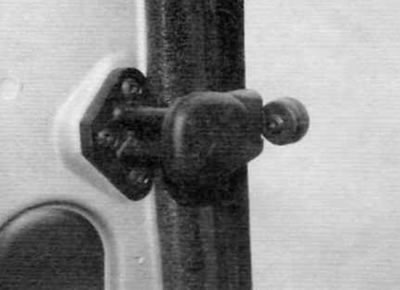

Figure 21.1 Remove the three screws securing the door window glass closing latch to the body
2. Support the glass, then remove the screws securing the upper and lower hinges of the window glass to the body (figure 21.2). Remove the glass.

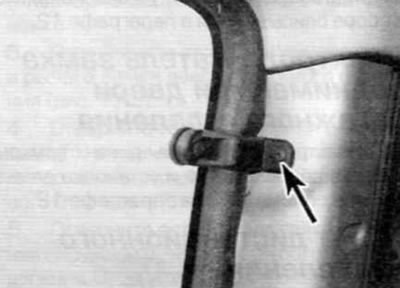

Figure 21.2. Remove the screws (one of them is marked with an arrow) fastening the window glass hinges to the body
Installation
3. Installation is performed in the reverse order of removal.
Side door glass
Removal
4. Remove the two screws securing the window glass closing latch to the door (figure 21.4).

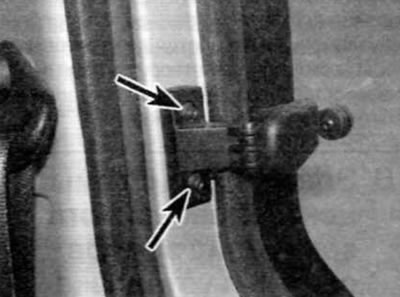

Figure 21.4. Remove two screws (marked with arrows) fastening the door window glass closing latch to the door
5. Open the door and remove the third screw securing the latch to the outer edge of the door frame (figure 21.5).

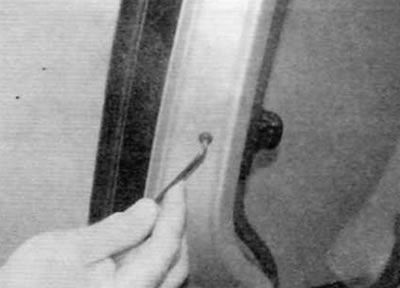

Figure 21.5. Remove the third screw securing the latch to the outer edge of the door frame
6. Support the glass, then remove the decorative caps and unscrew the screws securing the upper and lower hinges of the window glass to the door (figure 21.6, a, b). Remove the glass from the door.

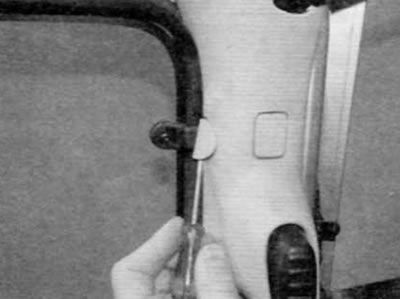

Fig. 21.6, a. Remove the decorative covers...

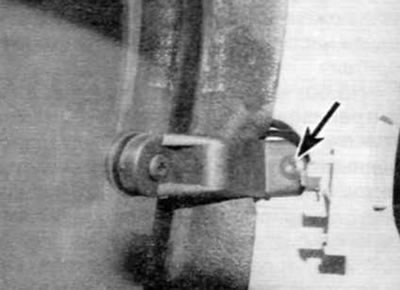

Figure 21.6, 6. ...and unscrew the screws (marked with arrows) fastening window glass hinges to the door
Installation
7. Installation is performed in the reverse order of removal.
